GAUGES
A variety of Tohatsu gauges are available through your local dealer; hour meters, volt meters, water pressure meters, speedometers, tilt/trim gauges, and tachometers. All manufactured to Tohatsu’s precision standards. Listed below is just a sample of gauges offered. Contact your dealer for a complete list of all Tohatsu gauges available for your outboard.

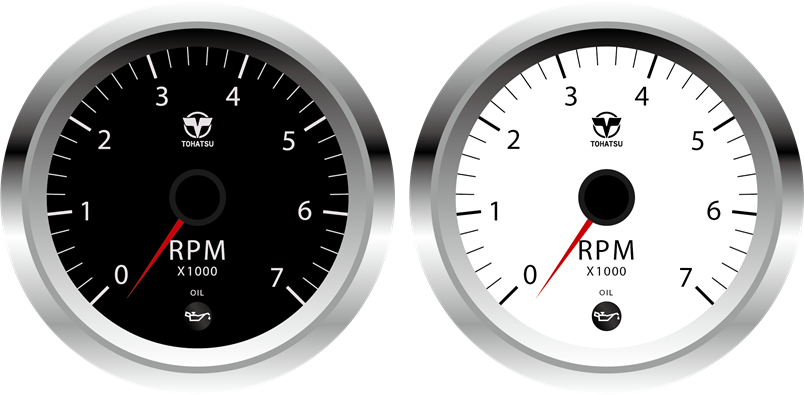

Tachometers
These 7,000 RPM tachometers (4″ diameter) have a chrome bezel, are back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog and scratch resistant coating. “MFS 4-Stroke(models shown in the chart below) 2-stroke Auto Mixing Oil Model” tachometer includes low oil warning light. “BFT” tachometer Includes a built-in digital Hour Meter to automatically track engine hours. A great feature to make it easy to keep up with maintenance intervals.
| Part Number | Color | Description |
| 3PA-72638-2 | Black (1 LAMP) | MFS6/8/9.8B MFS9.9/15/20E MFS25/30D MFS40/50/60A MFS75/90/100/115/140A (4-Stroke) & 2-stroke Auto Mixing Oil Models |
| 3PB-72638-2 | White (1 LAMP) | MFS6/8/9.8B MFS9.9/15/20E MFS25/30D MFS40/50/60A MFS75/90/100/115/140A (4-Stroke) & 2-stroke Auto Mixing Oil Models |
| 3PV-72637-2 | Black | BFT model (4-Stroke) |
| 3PU-72637-2 | White | BFT model (4-Stroke) |
| 3UR-72647-3 | Black (3 LAMP) | TLDI Models |
| 3WA-72647-3 | White (3 LAMP) | TLDI Models |

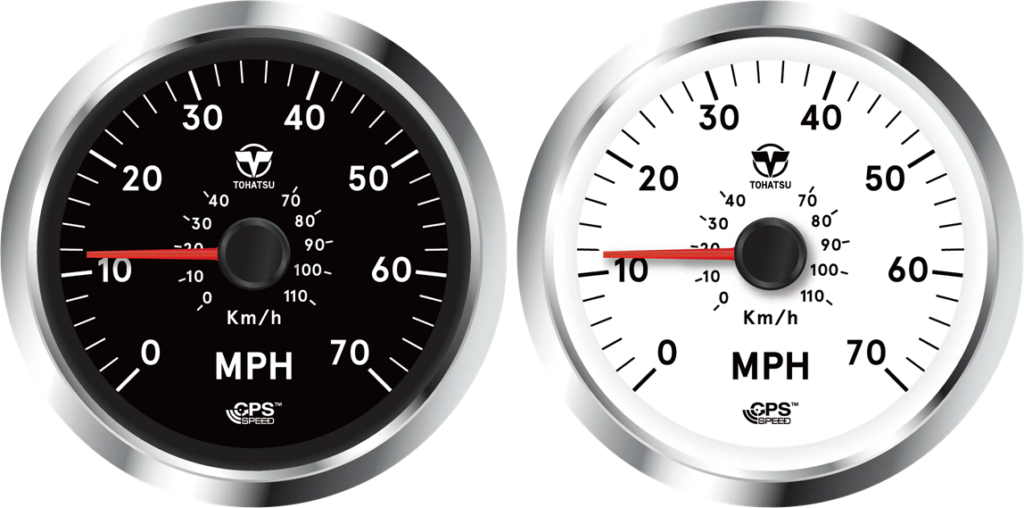

GPS Speedometers
GPS Speedometer (4” diameter) has an internal GPS antenna, a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.
| Part Number | Color | Description |
|---|---|---|
| 3KY-72682-1 | Black | 70 MPH 4" Diameter |
| 3UW-72682-1 | White | 70 MPH 4" Diameter |
Trim Meter
GPS Speedometer (4” diameter) has an internal GPS antenna, a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.
| Part Number | Color | Description |
|---|---|---|
| 3UR-72523-3 | Black | All Power Tilt models with 2-wire trim sender |
| 3WA-72523-3 | White | All Power Tilt models with 2-wire trim sender |
| 3PV-72571-3 | Black | For all BFT 60hp-250hp Power Tilt models |
| 3PU-72571-3 | White | For all BFT 60hp-250hp Power Tilt models |

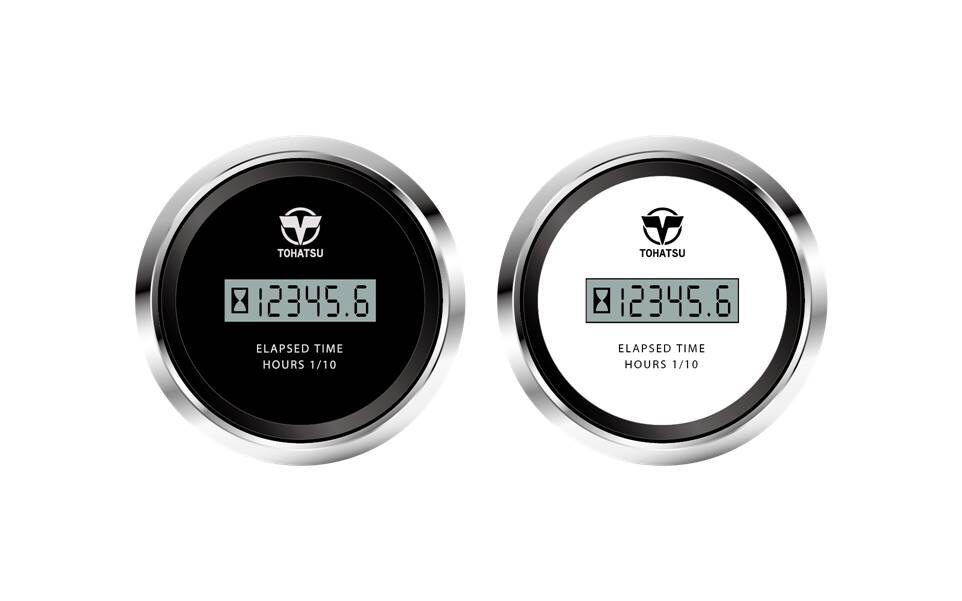

Hour Meters
Digital Hour Meter (2″ diameter) keeps track of how many hours on your outboard. Features a domed lens to minimize glare in direct sunlight, a fog & scratch resistant coating and chrome bezel. For in-dash use only.
| Part Number | Color | Description |
|---|---|---|
| 3UR-72523-3 | Black | All Power Tilt models with 2-wire trim sender |
| 3WA-72523-3 | White | All Power Tilt models with 2-wire trim sender |
| 3PV-72571-3 | Black | For all BFT 60hp-250hp Power Tilt models |
| 3PU-72571-3 | White | For all BFT 60hp-250hp Power Tilt models |

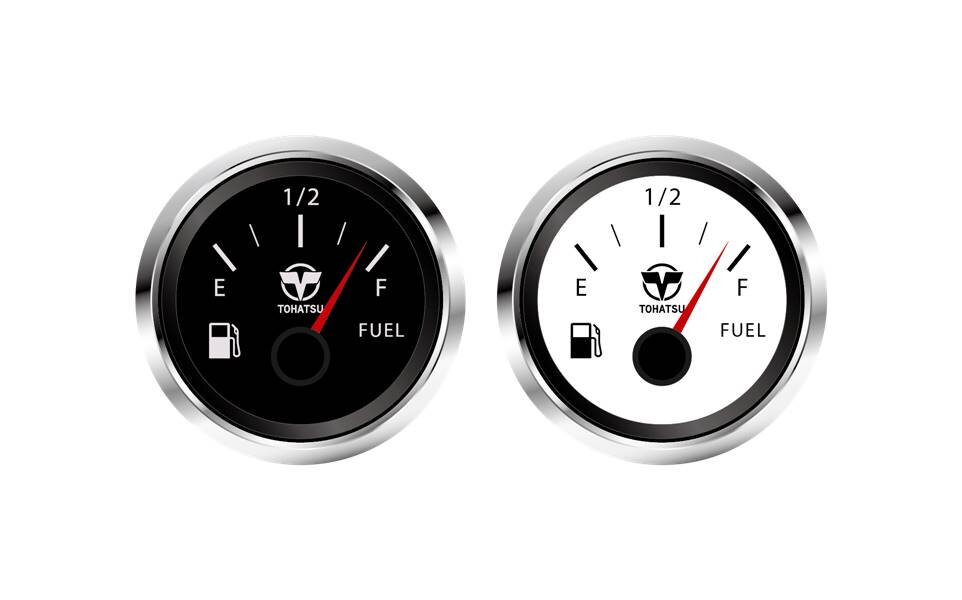

Fuel Gauges
Fuel Gauge (2″ diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.
| Part Number | Color | Description |
|---|---|---|
| 3UR-72600-1 | Black | 2" Diameter |
| 3WA-72600-1 | White | 2" Diameter |
Volt Meters
Volt meter (2″ diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.
| Part Number | Color | Description |
|---|---|---|
| 3UR-72531-1 | Black | 2" Diameter |
| 3WA-72531-1 | White | 2" Diameter |

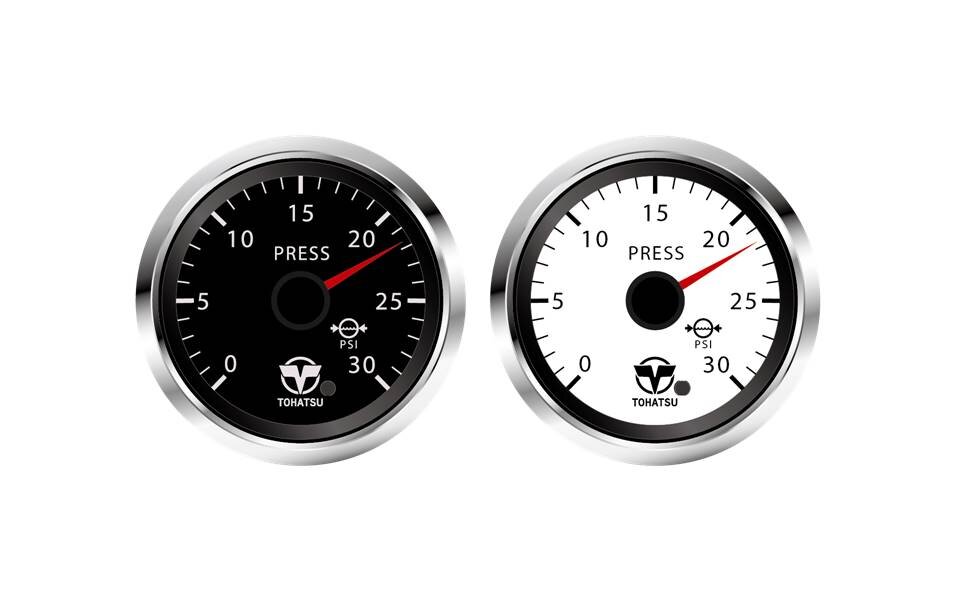

Water Pressure Meters
Water Pressure gauge (2″ diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk.
Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.
Includes hose and t-nipple.
| Part Number | Color | Description |
|---|---|---|
| 3UR-72527-2 | Black | MFS40/50/60A (4-Stroke) |
| 3WA-72527-2 | White | MFS40/50/60A (4-Stroke) |
