MAINTENANCE KITS
TOHATSU Maintenance Kits are composed of items that we consider they are “consumable parts”.
Thus, having a maintenance using this kit will mostly cover major points which need to be checked and updated periodically.
Maintenance Kits for MFS2/ 2.5/ 3.5C (3GT-87500-0) including following items
| Part Number | Description | Quantity |
|---|---|---|
| 309-64126-1 | Shear Pin 4-24 | 1 |
| 332-60006-1 | Gasket 8.1-15-1 | 2 |
| 338-60218-2 | Anode | 1 |
| 369-65021-1 | Water Pump Impeller | 1 |
| 369-65022-0 | Key φ2-11 | 1 |
| 3AB-65025-0 | Water Pump Guide Plate | 1 |
| 3F0-65011-0 | Pump Case Liner | 1 |
| 3F0-65018-0 | Pump Case Gasket | 1 |
| 3F0-65029-0 | Guide Plate Gasket | 1 |
| 3H6-07406-0 | Washer 10.2-19-1 | 1 |
| 951503-0435 | Split Pin 4-35 | 1 |
| 9701-1-1103 | Spark Plug (DCPR6E) | 1 |
Maintenance Kits for MFS4/5/6D (3GR-87500-1) including following items
| Part Number | Description | Quantity |
|---|---|---|
| 332-60006-1 | Gasket 8.1-15-1 | 2 |
| 369-02230-1 | Fuel Filter Assy | 1 |
| 369-65011-0 | Pump Case Liner | 1 |
| 369-65018-1 | Pump Case Gasket | 1 |
| 369-65021-1 | Water Pump Impeller | 1 |
| 369-65022-0 | Key φ2-11 | 1 |
| 369-65025-0 | WATER PUMP GUIDE PLATE | 1 |
| 369-65029-0 | Guide Plate Gasket | 1 |
| 3H6-07406-0 | Washer 10.2-19-1 | 1 |
| 3H6-60218-0 | Anode | 1 |
| 951503-0318 | Split Pin 3-18 | 1 |
| 9701-1-1103 | Spark Plug (DCPR6E) | 1 |
Maintenance Kits for MFS6BZ/8/9.8B (3V1-87500-0) including following items
| Part Number | Description | Quantity |
|---|---|---|
| 332-60006-0 | Gasket 8.1-15-1 | 2 |
| 369-02230-0 | Fuel Filter Assy | 1 |
| 369-60218-1 | Anode | 1 |
| 3B2-65011-0 | Pump Case Liner | 1 |
| 3B2-65018-2 | Pump Case Gasket | 1 |
| 3B2-65021-1 | Water Pump Impeller | 1 |
| 3B2-65022-0 | Key φ3-11 | 1 |
| 3B2-65025-0 | Water Pump Guide Plate | 1 |
| 3B2-65029-2 | Guide Plate Gasket | 1 |
| 3R3-01144-0 | Gasket | 1 |
| 3R3-07406-0 | Washer 14.5-24-1 | 1 |
| 3V1-60217-0 | Trim Tab | 1 |
| 951403-0310 | Spring Pin 3-10 | 2 |
| 951503-0318 | Split Pin 3-18 | 1 |
| 9701-1-1103 | Spark Plug (DCPR6E) | 2 |
Maintenance Kits for MFS9.9/15/20D (3SA-87500-0) including following items
| Part Number | Description | Quantity |
|---|---|---|
| 332-60006-0 | Gasket 8.1-15-1 | 2 |
| 334-65021-0 | Water Pump Impeller | 1 |
| 350-65011-1 | Pump Case Liner | 1 |
| 350-65022-0 | Key φ2-16 | 1 |
| 350-65025-0 | Water Pump Guide Plate | 1 |
| 369-60218-1 | Anode | 1 |
| 3BJ-07615-0 | Oil Filter | 1 |
| 3FS-65029-0 | Guide Plate Gasket | 1 |
| 3R3-01144-0 | Gasket | 1 |
| 3R3-07406-0 | Washer 14.5-24-1 | 1 |
| 3V1-60217-0 | Trim Tab | 1 |
| 951503-0322 | Split Pin 3-22 | 1 |
| 9701-1-1103 | Spark Plug (DCPR6E) | 2 |
Maintenance Kits for MFS9.9/15/20E (3RS-87500-0) including following items
| Part Number | Description | Quantity |
|---|---|---|
| 332-60006-0 | Gasket 8.1-15-1 | 2 |
| 3LD-65021-0 | Water Pump Impeller | 1 |
| 350-65011-1 | Pump Case Liner | 1 |
| 3RS-65022-0 | Key | 1 |
| 3RS-65025-0 | Water Pump Guide Plate | 1 |
| 3P0-60218-0 | Anode | 1 |
| 3BJ-07615-0 | Oil Filter | 1 |
| 3RS-65029-0 | Guide Plate Gasket | 1 |
| 3R3-07406-0 | Washer 14.5-24-1 | 1 |
| 3KY-60218-0 | Anode | 1 |
| 951503-0322 | Split Pin 3-22 | 1 |
| 9701-1-1103 | Spark Plug (DCPR6E) | 2 |
Maintenance Kits for MFS25/30C (3NV-87500-0) including following items
| Part Number | Description | Quantity |
|---|---|---|
| 332-60006-0 | Gasket 8.1-15-1 | 2 |
| 332-65022-0 | Key φ20-4.6-2 | 1 |
| 345-65021-0 | Water Pump Impeller | 1 |
| 348-65029-1 | Guide Plate Gasket | 1 |
| 3BJ-07615-0 | Oil Filter | 1 |
| 3C8-60217-1 | Trim Tab | 1 |
| 3P0-60218-0 | Anode | 2 |
| 3R0-65011-0 | Pump Case Liner | 1 |
| 3R0-65018-0 | Pump Case Gasket | 1 |
| 3R0-65025-0 | Water Pump Guide Plate | 1 |
| 3R3-07406-0 | Washer 14.5-24-1 | 1 |
| 951403-0312 | Spring Pin 3-12 | 1 |
| 951503-0322 | Split Pin 3-22 | 1 |
| 9701-1-1103 | Spark Plug (DCPR6E) | 3 |

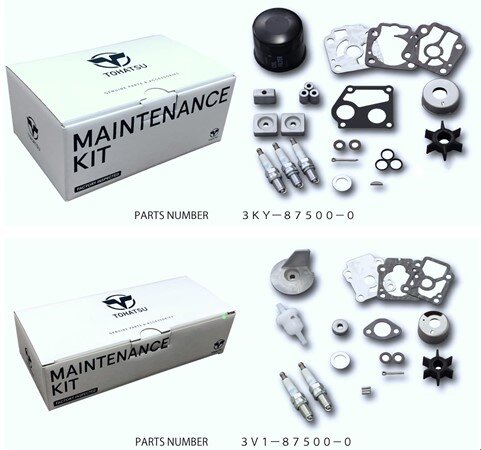

Maintenance Kits for MFS40/50A (3KY-87500-0) including following items
| Part Number | Description | Quantity |
|---|---|---|
| 332-60006-0 | Gasket 8.1-15-1 | 2 |
| 332-65022-0 | Key φ20-4.6-2 | 1 |
| 3B7-60218-1 | Anode | 1 |
| 3BJ-07615-0 | Oil Filter | 1 |
| 3C8-65021-2 | Water Pump Impeller | 1 |
| 3C8-65025-0 | Water Pump Guide Plate | 1 |
| 3C8-65029-2 | Guide Plate Gasket | 1 |
| 3KY-01032-0 | Thermostat Cap Gasket | 1 |
| 3KY-60218-0 | Anode | 2 |
| 3P0-60218-0 | Anode | 3 |
| 3R3-07406-0 | Washer 14.5-24-1 | 1 |
| 3T5-10046-0 | O-Ring 1.9-13 | 3 |
| 3T5-65011-0 | Pump Case Liner | 1 |
| 3T5-65018-2 | Pump Case Gasket | 1 |
| 951503-0325 | Split Pin 3-25 | 1 |
| 9701-1-1121 | Spark Plug (DCPR6E) | 3 |
