TOCS GAUGES

TOCS(Tohatsu onboard communication system) is a communication network that integrates the electrical devices within the boat and all devices are compatible with NMEA2000®.

The TOCS gauges are only applicable for models listed below and restriction on the serial no. applies as below.

MFS25/ 30D : Applicable for all serial no.
MFS40/ 50A : Applicable for serial no. 013179AE and above
MFS60A : Applicable for all serial no.
MFS75/ 90/ 100/ 115/ 140A : Applicable for all serial no.
BFT Model : Applicable for all serial no.
MFS25/ 30C : Applicable for all serial no.067991AD and above (MFS25/ 30C also requires INTERFACE CABLE(3NV-76133-0) for connection between ECU and engine drop cable.
MD30/ 40/ 50B2 : Applicable for serial no. 004743AE and above
MD75/ 90C2 : Applicable for serial no. 011819AE and above
MD115A2 : Applicable for serial no. 011828AE and above

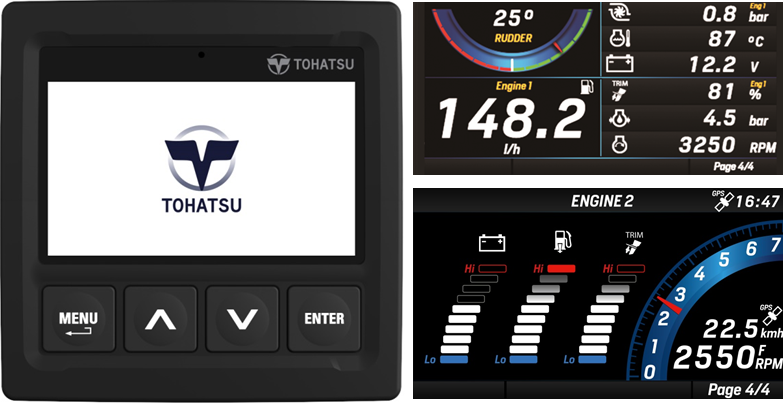

TOCS 4.3 inch LCD Display

The optional TOCS (Tohatsu Onboard Communication System) 4.3 inch LCD Display connects to the CAN bus and communicates directly with the engine’s ECU. Engine data, fault codes, and alarms are displayed on the LCD display, and performs with perfect visibility even under the direct sunlight. It is fully compatible with Tohatsu outboards MFS25C to MFS115A and BFT models including self-diagnosis function.
Part NumberDescriptionApplicable Models and Remarks
3ZG-72630-0TOCS 4.3’’ LCD DISPLAY KITFor USA, CANADA, EU+EEA, AUSTRALIA AND NEW ZEALAND ONLY

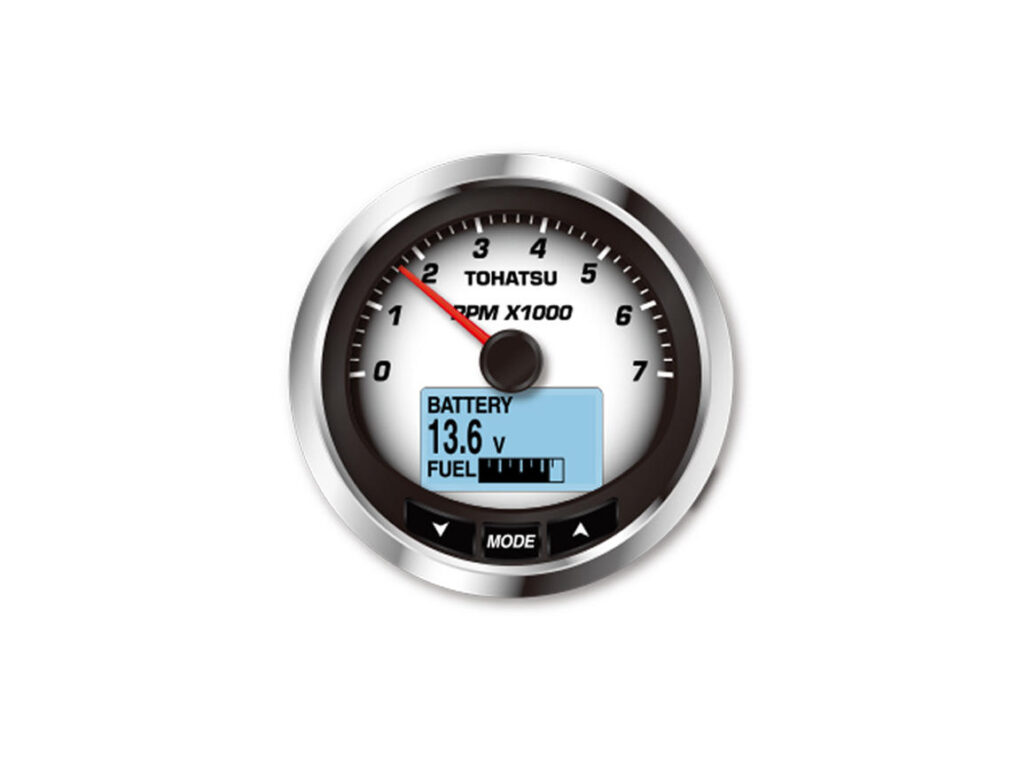

Multi-Function Tachometer

The TOCS Digital Tachometer features large lighted buttons, chrome bezel, fog and scratch resistant coating , plug & play connectors and is LED back-lit for easy viewing at night/dusk. A user-friendly, intuitive design makes the menu easy to navigate. The TOCS multi-function tachometer connects to the CAN bus and communicates directly with the engine’s ECU. Engine data, fault codes and alarms are displayed on the LCD display (TLDI & MFS models only) and are visible even in direct sunlight. Fits a standard 85mm (3.375 inch) instrument dash hole which makes this tachometer the perfect drop-in replacement for your current tachometer. In addition to showing the outboard’s RPM’s the gauge also features:Tilt/Trim Gauge (optional harness needed for MFS/TLDI models, part number 3KY-72573-0)

    • Engine Operating Temperature
    • Engine Overheat Warning
    • Engine Battery Voltage
    • Low Battery Voltage Warning
    • Over Rev. Warning
    • Engine Safety Governor Mode Warning
    • Fuel Flow Rate (Gallons Per Hour)
    • Multiple Fuel Tank Levels
    • Total Engine Hours
    • Lanyard Not Installed Warning (not available on TLDI)
    • Low Oil Pressure Warning (TLDI displays Low Oil Level Warning)
    • Oil Change/Scheduled Maintenance Notice (not available on TLDI)
    • Charging System Indicator Warning (BFT models only)
    • Water-In-Fuel Warning (BFT models only)
Part NumberDescription
3KY-72638-0Tachometer kit (includes Harness and operation manual)

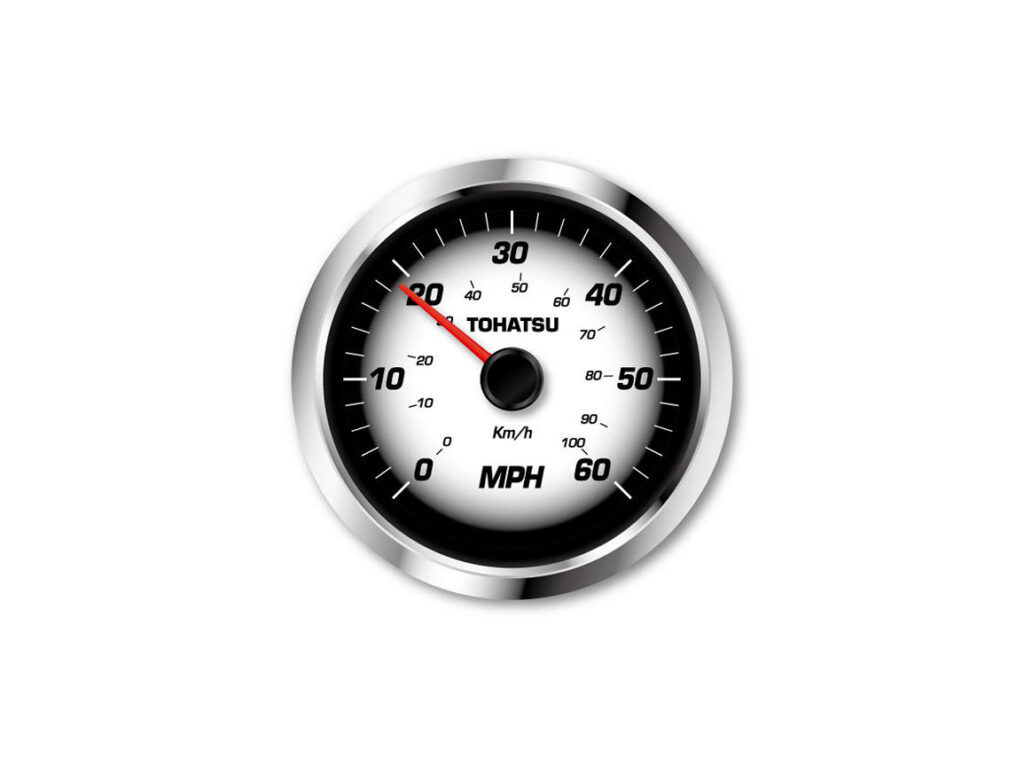

Speedometer

Part NumberDescription
3KY-72672-0Speedometer kit (includes Harness for SPEED)

Mas ande otro criollo pasa Martín Fierro ha de pasar, Nada la hace recular Ni las fantasmas lo espantan; Y dende que todos cantan Yo también quiero cantar.

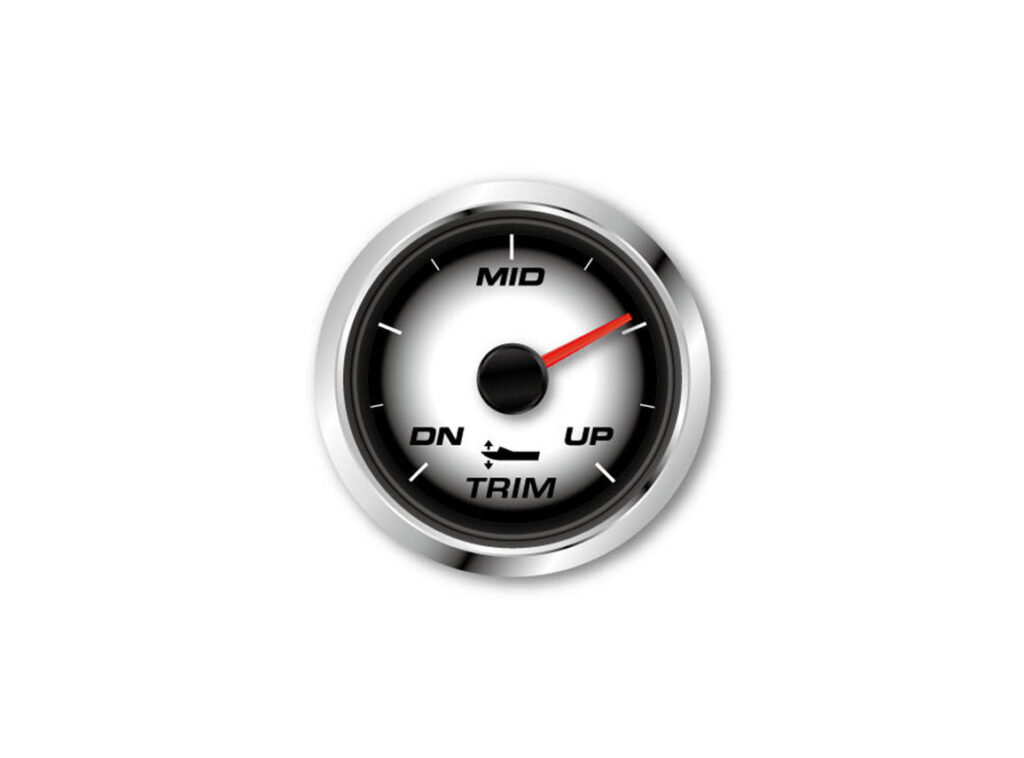

Trim Meter

Part NumberDescription
3KY-72523-0Trim Meter kit (includes Harness with 4 pins)

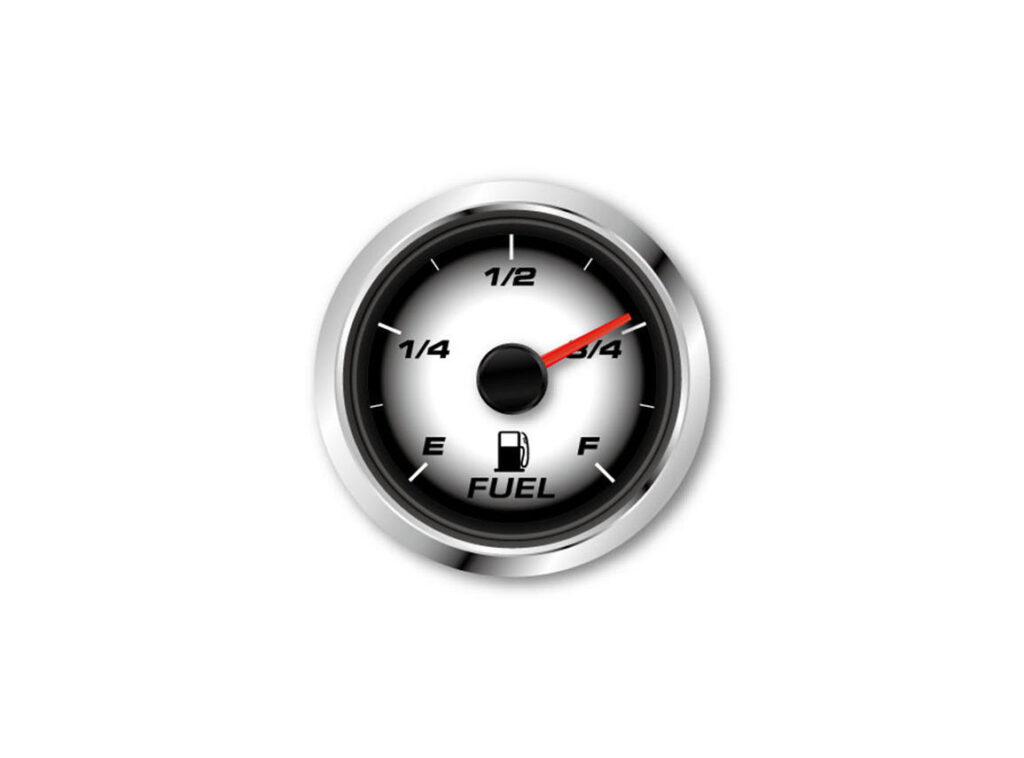

Fuel Meter

Part NumberDescription
3KY-72600-0Fuel Meter kit (includes Harness with 4 pins)

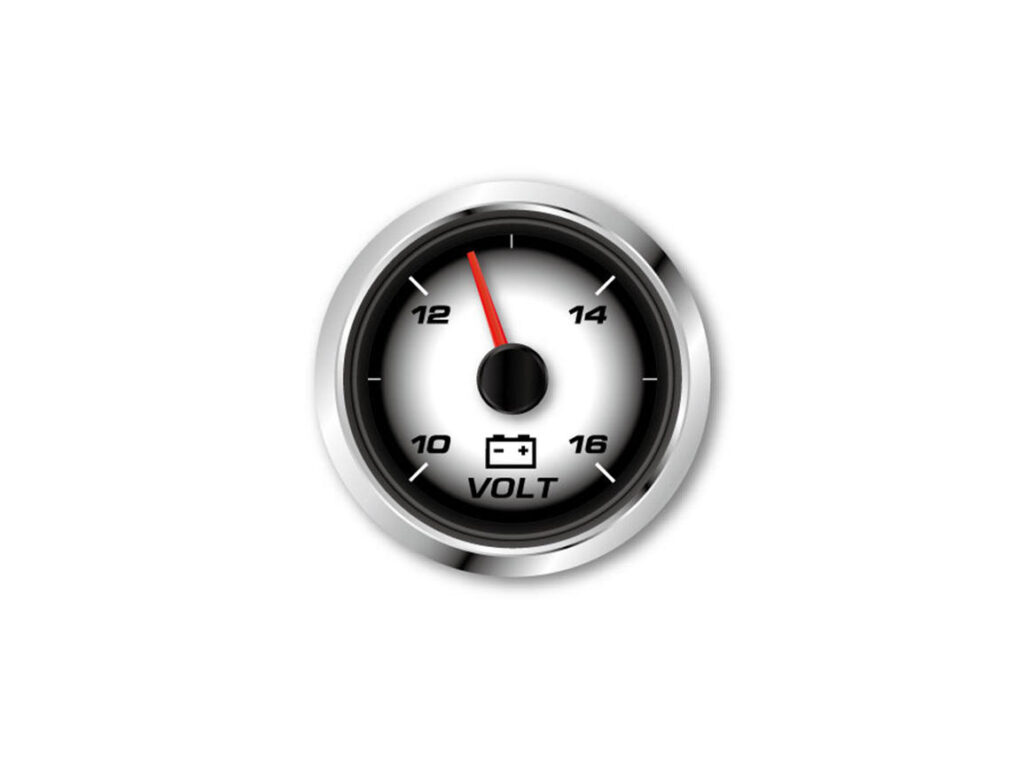

Volt Meter

Part NumberDescription
3KY-72600-0Volt Meter kit (includes Harness with 4 pins)

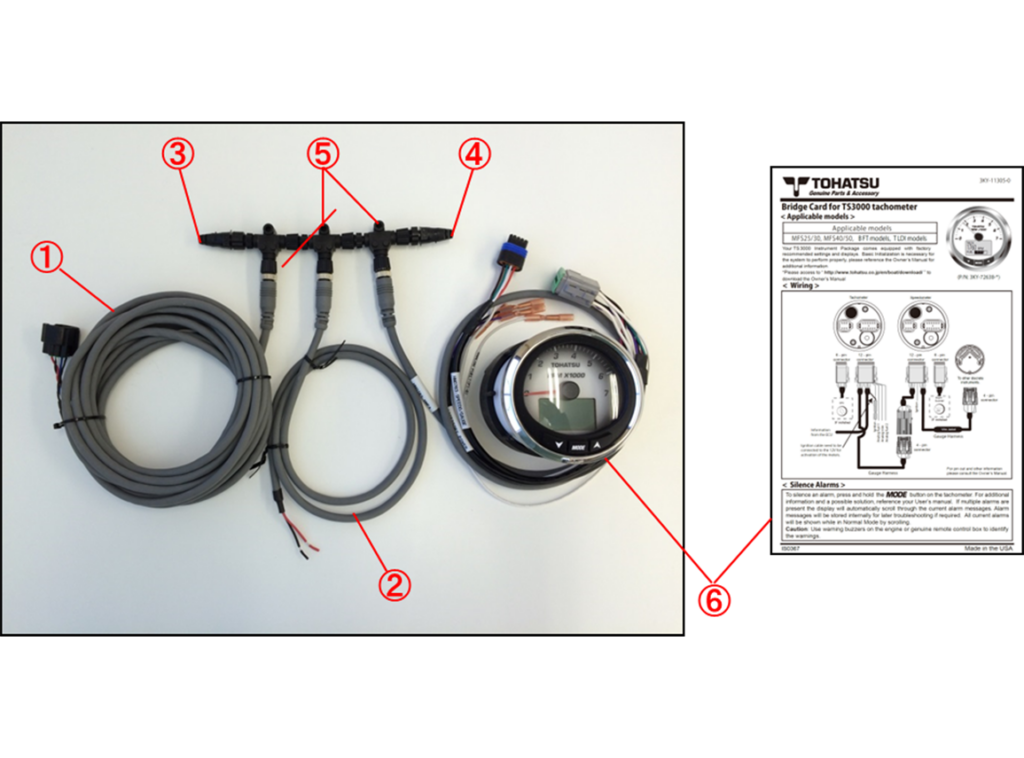

TOCS Starter Kit

Basic starter kit includes Engine drop cable, Battery cable, Terminator(Female and Male), Tee Connector and Tachometer and operation manual. In case other gauges are needed, you can just plug in the additional gauge to display.

No.Part NumberDescription
①3KY-76131-0Engine Drop Cable
②3KY-76120-0Battery Cable
③3KY-76152-0Terminator (female)
④3KY-76153-0Terminator (male)
⑤3KY-76151-0Tee Connector
⑥3KY-72638-0Tachometer kit (includes Harness and operation manual)

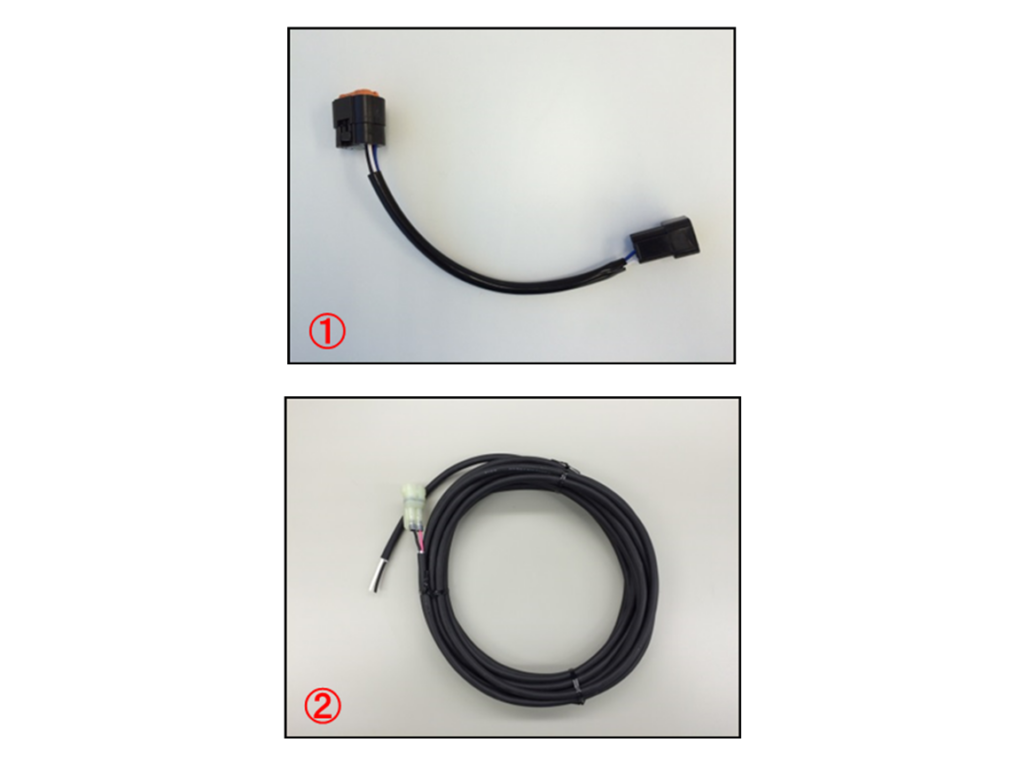

Miscellaneous Accessories

No.Part NumberDescription
①3NV-76133-0Interface Cable (for MFS25/30C)
②3KY-72573-0Extension Cord (for Trim Sensor)
